SDS-RIT

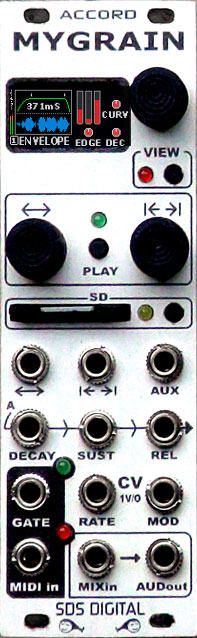

The SDS Digital Accord MyGrain synth was designed with size and rhythmic applications in mind.
It can do standard granular droning and deep soundscapes but with it's multi-timbral sourcing can add
other layers that are punchy, percussive, and melodic.

With up to 4 stereo channels and post-FX routing; samples, grains, and drones can be brought out in perfect sync.
Granular FX are plenty, and unique. So unique we're reluctant to indulge them until just before the release!

With the MIDI input, samples & grains can be played with 4 MIDI channels, and nearly every internal parameter
can be controlled via MIDI CC, NRPN (14 bit), and Pitch bending, making it a perfect companion for the
Accord Sequarallel, Melisma, or any MIDI sequencer.

	128 Voice, 2 Channel Polyphony with 24 bit audio, 32 bit floating point
	Live Audio Input, SD Card Samples Save Samples/Grains to SD Card
	4 Independent Stereo Sample Channels to Play 4 Grain clouds at once
	Multiple Grain-unique grainFX*, followed by Superb post-FX mix
	Quantize-able grains cloud for Rhythmic and clocked Applications
	Variable motion Grains Play-head(s) can be internal LFO or CV controlled
	Grain Channels opt-in for Gate Trigger, while others can be melodic drones
	MIDI input to Play all 4 channel's Grains and control every aspect of the module.
	Gate & Rate jacks to trigger and pitch at 1 V/Oct
	Mod CV input to control a programmed modulation target.
	Re-definable Aux, and trigger envelope shape jacks.
	"View" button to select knob function "pages" including the "Groove" pages **
	Color LCD Display for easy viewing Only 8 HP / Appx. 32 mm depth

"Super Compact but with top-notch audio and features"

"It'll be great to have a whole library of samples & grains in the skiff!"

●	Stereo I/O: Audio (Mix in & AudOut panel jacks) are dual channel TRS but can be used with mono plugs if desired.
●	Clock is derived from beat detection, Gate input, Midi input, or Aux jack configured to be clock input. Clock is not required for most features.
●	Any wave sample on SD Card can be read and played as a sample or grains
●	Recording can be looped to capture last x seconds for live granulizing
●	CV Inputs can control grain(s) size and position on the fly natively with adjustable gain/offset across participating grains
●	CV Inputs can set the envelope of a grain or set of grains, each with gain offsets to tailor sound
●	CV Rate and Mod change the pitch, slew, warble, or density behavior of grains
●	True 24 bit audio I/O leaves no room for line noise
●	Simple methods of recording
●	Pads or Midi keyboard can be used to achieve more in-depth control (all customizable)
●	Firmware Updates, samples storage, projects, via panel SD Card

Here are some scenarios you may want to use. Most options (settings) have little affect on these operations, so no menu diving!
...more to come
